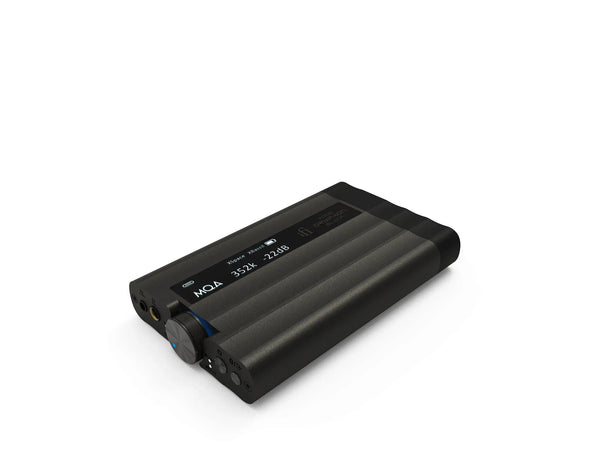

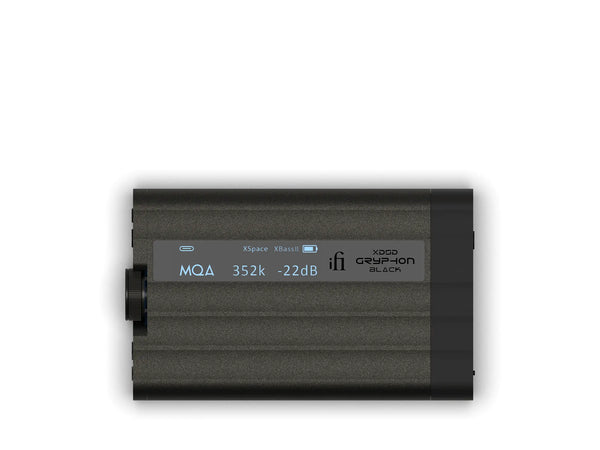

ifi xDSD Gryphon

Regular price €598,00

Tax included.
A hi-fi system in your pocket

Premium HD DAC + Powerful Balanced headamp.

Fantastic Beasts. Here’s where you find them.

Portable DAC/amps tend to be compromised because they focus on a great digital OR a great analogue section. But not both. The xDSD Gryphon is different. Just like its mythical namesake, it is two beasts in one.

From the Ultra-Res digital stage using the Burr-Brown MultiBit at the core to the PureWave analogue power section pumping out 1,000mW and other things in-between, it takes serious headphones to tame the Gryphon.

Well-connected

  • Separate Bluetooth + DAC + amp stages: each optimised for maximum performance
  • Digital sources via USB, S/PDIF or Bluetooth
  • Analogue sources via 4.4mm or 3.5mm inputs

Brilliant Bluetooth. Hi-Res Wireless.

Using the latest QCC 5100 series Bluetooth v5.1 as the starting point, for wireless connectivity, the xDSD Gryphon is at the bleeding-edge when it comes to the latest formats:

  • aptX Adaptive and aptX HD
  • LDAC and HWA/LHDC
  • regular aptX and aptX Low Latency
  • AAC
  • SBC (plain vanilla Bluetooth)

Not only this but the above is on the iFi digital platform where each section is distinct. So QC5100 for reception > Global Master Clock for jitter > Burr-Brown for DAC conversion. More effort but that’s why our wireless gives wired a run for its money.





xDSD Gryphon from iFi audio










A hi-fi system in your pocket

Premium HD DAC + Powerful Balanced headamp.



Fantastic Beasts. Here’s where you find them.

Portable DAC/amps tend to be compromised because they focus on a great digital OR a great analogue section. But not both. The xDSD Gryphon is different. Just like its mythical namesake, it is two beasts in one.

From the Ultra-Res digital stage using the Burr-Brown MultiBit at the core to the PureWave analogue power section pumping out 1,000mW and other things in-between, it takes serious headphones to tame the Gryphon.

Well-connected

  • Separate Bluetooth + DAC + amp stages: each optimised for maximum performance
  • Digital sources via USB, S/PDIF or Bluetooth
  • Analogue sources via 4.4mm or 3.5mm inputs
xDSD Gryphon from iFi audio

Brilliant Bluetooth. Hi-Res Wireless.

Using the latest QCC 5100 series Bluetooth v5.1 as the starting point, for wireless connectivity, the xDSD Gryphon is at the bleeding-edge when it comes to the latest formats:

  • aptX Adaptive and aptX HD
  • LDAC and HWA/LHDC
  • regular aptX and aptX Low Latency
  • AAC
  • SBC (plain vanilla Bluetooth)

Not only this but the above is on the iFi digital platform where each section is distinct. So QC5100 for reception > Global Master Clock for jitter > Burr-Brown for DAC conversion. More effort but that’s why our wireless gives wired a run for its money.


USB & S/PDIF. Wired to the nines.

In terms of wired connectivity, the xDSD Gryphon handles all the formats using a hybrid Burr-Brown DAC chipset which is the same as used in our £3,000 flagship, the Pro iDSD Signature.

Rest assured that all the following latest formats are catered for but most importantly, are pushed to their zenith.

Balance of Power



On USB:

  • PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1 kHz)
  • DSD (512/256/128/64)
  • DXD (768/705.6/384/352.8kHz)
  • MQA (Decoder)

On S/PDIF

  • PCM (192/176.4/96/88.2/48/44.1 kHz)
  • DoP

Inputs Wireless

Wired (digital)


Wired (analogue)
Bluetooth 5.1 (aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA, AAC and SBC Codec)

USB-C
S/PDIF co-axial

Balanced 4.4mm
Single-Ended 3.5mm
Formats DSD
PCM
DXD
MQA (Decoder)

Bluetooth
DSD512/256/128/64, Octa/Quad/Double/Single-Speed
768/705.6/384/352.8/192/176.4/ 96/88.2/48/44.1kHz
768/705.6/384/352.8kHz, Double/Single-Speed DXD
384/352.8kHz

Up to 96kHz
DAC Burr-Brown
Battery USB-C charging. BC1.2 compliant up to 1900mA charging current
Dimensions 123x75x19 mm
4.8"x3.0"x0.7"
Weight 215 grams
0.5 Ibs
Line Section
Outputs Balanced
S-Bal (SE)
6.7V max. (variable)
3.5V max. (variable)
Output Impedance Balanced
S-Bal (SE)
≤200Ω
≤100Ω
Balanced
S-Bal (SE)
<110dB(A) @ 0dBFS
<110dB(A) @ 0dBFS
Balanced
S-Bal (SE)
<0.007% @ 0dBFS
<0.015% @ 0dBFS
Headphone Section
Outputs Balanced
S-Bal (SE)
4.4mm Pentaconn
3.5mm SE
Output Power Balanced


S-Bal (SE)
>1000mW @ 32Ω
>74mW @ 600Ω
>6.7V max. @ 600Ω

>320mW @ 32Ω
>40mW @ 300Ω
>3.5V max. @ 600Ω
Output Impedance Balanced
S-Bal (SE)
<1Ω
<1Ω
SNR Balanced
S-Bal (SE)
<116dB(A) @ 0dBFS
<115dB(A) @ 0dBFS
THD+N <0.005% (1V @ 16Ω)
